Gazelle SA 341 SA 342 Torquemeter

The torquemeter is an unique instrument but so common at the helicopters.As the word say it measures the torque.Torque between main rotor and engine.It is one of the most important instruments.So here it is at the  test board attached .

Then checking the zero point with the test device,it seems ok so far.

There you see the fixed zero point ad device prior the testing.

From the both sides of torque indicator there are holes where you can adjust the tolerance at 0% and 100%.

In case of using older version of device there are some tolerances to be inputed so this is the nearly fair good readings of maximum torque at SA 342.

This is the reading at 50%

How to connect the cables to Gazelle instalation.

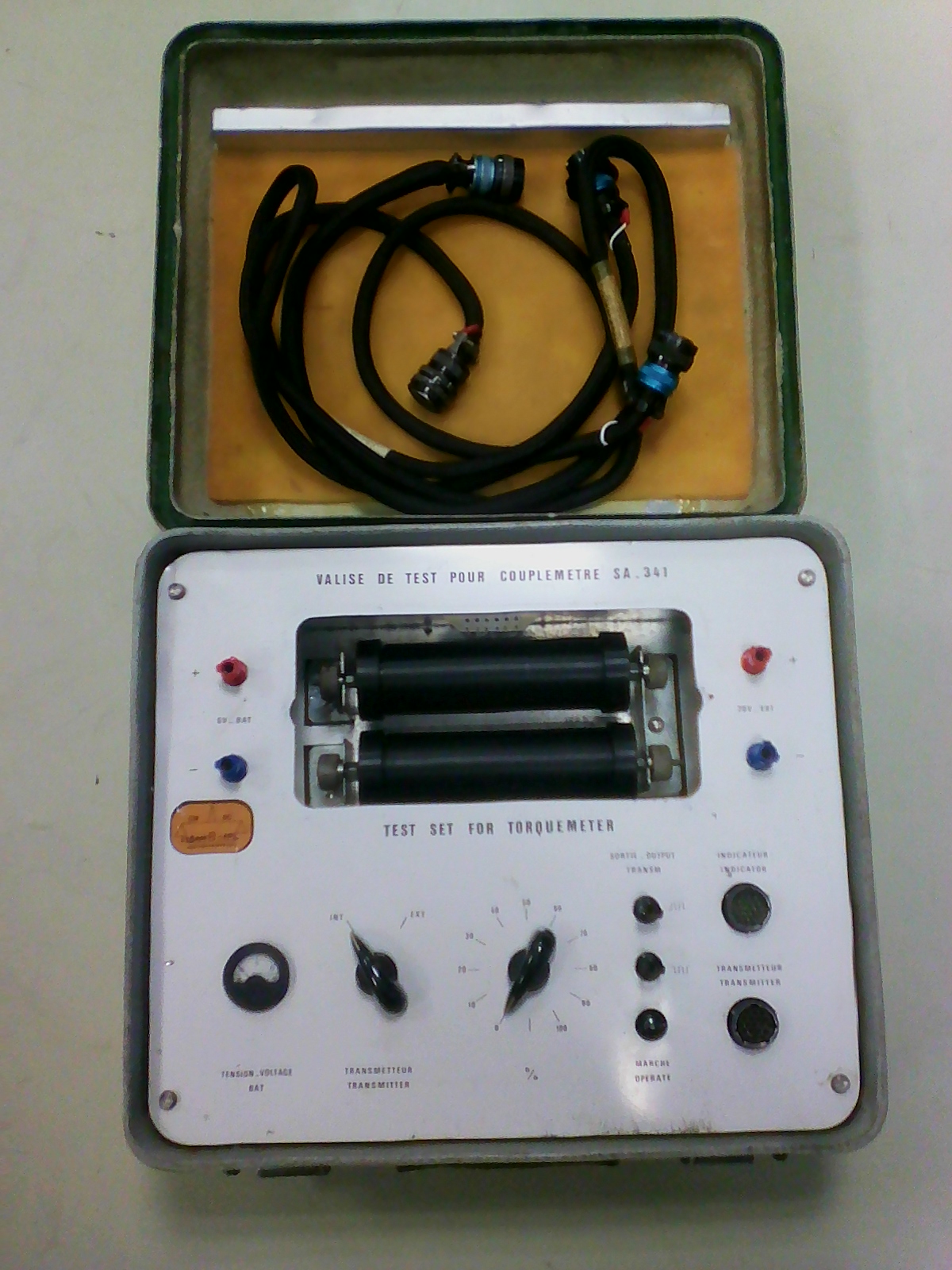

This is the device itself fairly packed after testing.

At this picture you can see the test device up too 120 %

.It is used to test torque indicator and sender for SA 341 and SA 342 Gazelles

and following pictures are showing the test device for  PCB of Torquemeter sender

and the PCB's inside Indicator and sender that can be overhauled as well.
